Insulation Protection Mesh (GI/SS) Installation Contractor in Dubai UAE
Insulation Protection Mesh (GI/SS) Installation Contractor in Dubai UAE
In industrial, commercial, and infrastructure projects across Dubai, Abu Dhabi, Sharjah, Ajman, Umm Al Quwain, Ras Al Khaimah, and Fujairah, Insulation Protection Mesh made from Galvanized Iron (GI) or Stainless Steel (SS) plays a critical role in enhancing durability, safeguarding insulation systems, and ensuring long-term performance.
Protek Contracting, a leading Insulation Protection Mesh Installation Contractor in Dubai, UAE and the Middle East, specializes in design, supply, and installation of high-quality GI and SS mesh solutions for diverse insulation applications.
Whether you are protecting thermal, acoustic, or fireproof insulation, our GI/SS meshes provide mechanical strength, corrosion resistance, and compliance with UAE and international standards.
What is Insulation Protection Mesh (GI/SS)?

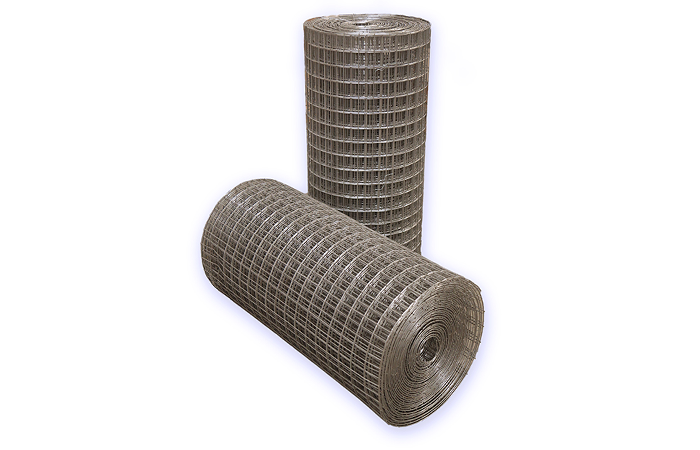

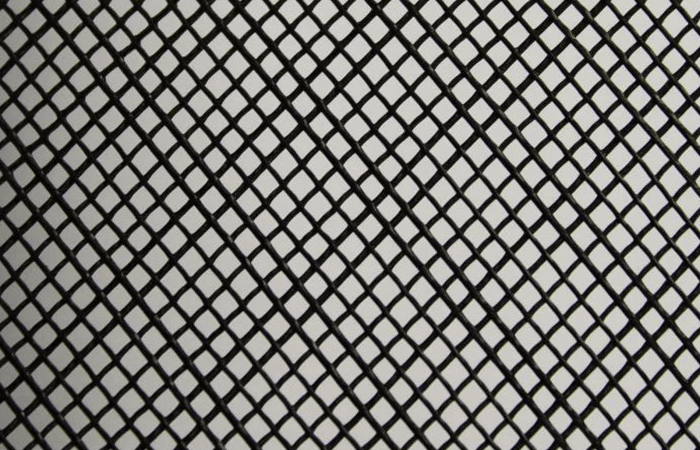

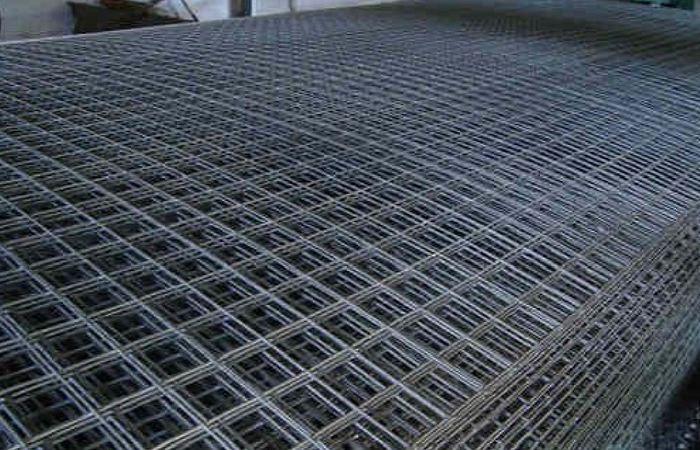

An Insulation Protection Mesh is a woven or welded wire product installed over insulation to:
Prevent mechanical damage.
Maintain insulation integrity during maintenance or impact.
Allow ventilation while keeping insulation materials intact.
Resist corrosion in challenging environments.
GI mesh is made from zinc-coated steel wire for corrosion resistance, while SS mesh uses stainless steel grades (304, 316) for superior chemical and saltwater resistance.
Advantages of Using GI/SS Mesh for Insulation Protection
1. Superior Mechanical Protection
Prevents tearing, crushing, or dislodging of insulation in high-traffic industrial areas.
2. Corrosion Resistance
GI Mesh: Zinc coating resists rust for long service life.
SS Mesh: Excellent performance in marine and offshore environments in Fujairah and Umm Al Quwain.
3. Fire Resistance
Maintains structural integrity even under high temperatures, critical for oil & gas facilities in Abu Dhabi.
4. UV & Weather Protection
Resists degradation from Dubai’s intense sun and Sharjah’s high humidity.
5. Easy Maintenance Access
Flexible and easy to remove for inspection or repair.
Technical Specifications (Protek Standard Supply)
Mesh Type: Woven or welded.
Material Grades: GI, SS 304, SS 316.
Wire Diameter: 0.7mm to 1.6mm.
Aperture Size: 12mm x 12mm, 25mm x 25mm (custom sizes available).
Roll Widths: 900mm, 1,000mm, 1,200mm.
Temperature Resistance: Up to 800°C for SS mesh.
Applications Across the UAE and Middle East
1. Oil & Gas Pipelines
Protects insulation in Abu Dhabi refineries from external impact.
2. HVAC Systems
Guards duct insulation in Dubai commercial towers.
3. Marine and Offshore Platforms
SS mesh prevents damage from seawater exposure in Fujairah.
4. Industrial Tanks & Vessels
Secures insulation layers in Sharjah manufacturing facilities.
5. Power Plants
Reinforces insulation against vibration and mechanical stress in Ras Al Khaimah.
GI vs. SS Mesh – Which Should You Choose?
Feature
GI Mesh
SS Mesh
Cost
Lower
Higher
Corrosion Resistance
Good
Excellent
Marine Suitability
Moderate
High
Temperature Resistance
400°C
800°C
Durability
8–10 years
15+ years
Protek’s Proven Installation Process
Step 1 – Assessment
Site survey to evaluate insulation type, location, and exposure.
Step 2 – Material Selection
Choose between GI or SS mesh based on environmental factors.
Step 3 – Fabrication
Mesh cut to size for ducts, pipes, tanks, and irregular shapes.
Step 4 – Installation
Mesh fixed with stainless steel tie wires, bands, or clips.
Step 5 – Quality Check
Inspections to ensure proper overlap, tight fit, and secure fastening.
Why GI/SS Mesh is Critical for the UAE Climate
High UV resistance for Dubai rooftop installations.
Corrosion protection in Abu Dhabi’s coastal industrial zones.
Humidity tolerance for Sharjah food processing facilities.
Salt spray durability for Fujairah marine applications.
Industries We Serve
Oil & Gas
Power Generation
Marine & Offshore
HVAC & MEP
Petrochemical Plants
Food Processing
Pharmaceutical Facilities
Standards & Certifications
Our GI/SS mesh installations comply with:
ISO 9001:2015 – Quality management.
ISO 14001:2015 – Environmental management.
ISO 45001:2018 – Health and safety.
UAE Civil Defense fire safety requirements.
ASTM A580/A580M for stainless steel wire.
Case Study – SS Mesh for Fujairah LNG Facility
Challenge: Harsh marine environment causing rapid corrosion on GI mesh.
Solution: Installed SS 316 mesh for superior saltwater resistance.
Why Choose Protek for Insulation Protection Mesh Installation in Dubai, UAE?
Expertise: 20+ years in insulation protection.
Material Quality: Only premium GI and SS grades.
Custom Solutions: Tailored mesh sizes and fastening systems.
Regional Experience: Understanding of UAE climate and industry needs.
Full Service: Supply, fabrication, installation, and maintenance.
Whether for industrial pipelines in Abu Dhabi, marine platforms in Fujairah, or commercial HVAC systems in Dubai, Insulation Protection Mesh (GI/SS) is a vital component for long-term insulation performance. Protek Contracting delivers durable, safe, and compliant installations across the UAE and Middle East, ensuring your insulation investments remain protected for years to come.
