Aluzinc & Galvanized Cladding  Installation Contractor in Dubai UAE

In the construction, industrial, oil & gas, marine, and power generation sectors across Dubai, Abu Dhabi, Sharjah, Ajman, Umm Al Quwain, Ras Al Khaimah, and Fujairah, Aluzinc and Galvanized Cladding have emerged as leading solutions for asset protection, corrosion resistance, and long-term insulation jacketing. Known for their strength, cost-effectiveness, and weather resilience, these materials are extensively used to protect insulated pipelines, tanks, vessels, HVAC systems, and industrial structures.

Protek Contracting, a premier Aluzinc & Galvanized Cladding Installation Contractor in Dubai, UAE and the Middle East, specializes in delivering high-performance mechanical protection systems that extend insulation life, improve safety, and comply with UAE Civil Defense and international standards.

Understanding Aluzinc and Galvanized Cladding

• Aluzinc Cladding is made from steel coated with an alloy of 55% aluminum, 43.4% zinc, and 1.6% silicon. This combination offers superior corrosion resistance compared to standard galvanized coatings, especially in coastal and industrial atmospheres.
• Galvanized Cladding is produced by hot-dip coating steel with a layer of zinc, forming a protective barrier against rust. It is widely used for industrial and utility applications due to its affordability and durability.

Advantages of Aluzinc & Galvanized Cladding

1. Long-Lasting Corrosion Resistance

• Aluzinc provides up to three times the lifespan of traditional galvanized steel in harsh environments.
• Galvanized steel offers reliable rust prevention for decades in inland and dry climates.

2. Mechanical Strength

• Both materials deliver high impact resistance, protecting insulation from mechanical damage.

3. Heat Reflectivity

• Aluminum in Aluzinc reflects solar radiation, reducing heat transfer in hot UAE climates.

4. Cost Efficiency

• Galvanized cladding is one of the most affordable mechanical protection options.

5. Versatility

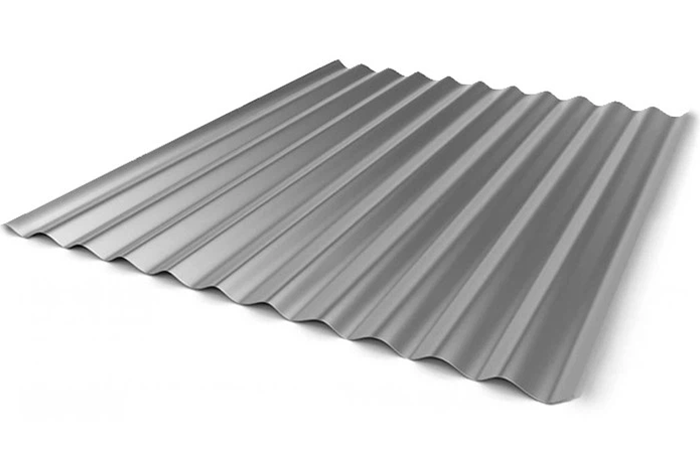

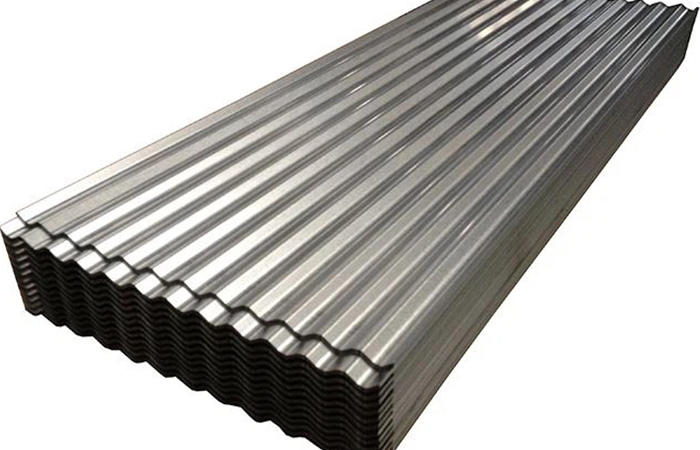

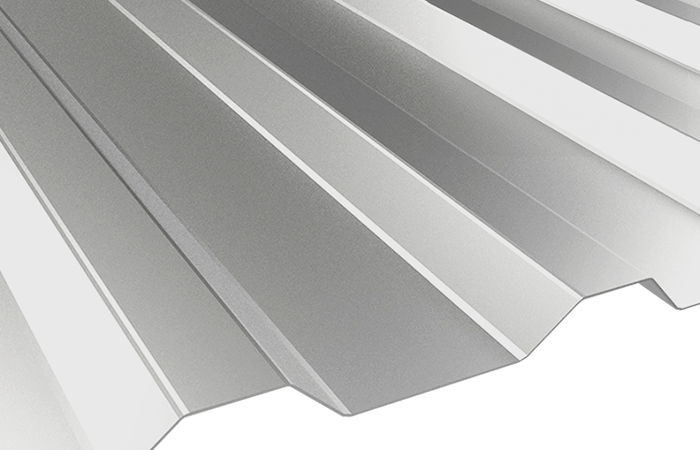

• Available in plain, corrugated, and stucco finishes for a variety of industrial and architectural applications.

6. Fire Resistance

• Non-combustible, meeting UAE Civil Defense safety standards for building and industrial applications.

Grades & Thickness Options

At Protek Contracting, we supply and install:

• Aluzinc AZ150, AZ185 – For coastal and highly corrosive environments.
• Galvanized Z275, Z350 – For inland and industrial environments.
• Thicknesses: 0.4 mm to 1.2 mm, selected based on wind load, mechanical protection needs, and project specifications.

Applications in the UAE and Middle East

1. Industrial Pipe and Duct Cladding

• Protection for hot, cold, and cryogenic insulation systems.

2. Tank and Vessel Cladding

• Prevents water ingress and corrosion on storage tanks in Abu Dhabi and Ras Al Khaimah.

3. HVAC System Jacketing

• Durable, weatherproof finish for rooftop ducts and chilled water pipe insulation in Dubai high-rises.

4. Offshore and Marine Installations

• Aluzinc is favored for its saltwater resistance in Fujairah and Umm Al Quwain.

5. Agricultural and Utility Structures

• Cost-effective weatherproofing for sheds, warehouses, and service enclosures.

Aluzinc vs. Galvanized – Which is Better?

Protek’s Installation Process

Step 1 – Site Evaluation

• Assess insulation type, exposure, wind load, and corrosive factors.

Step 2 – Material Selection

• Choose appropriate coating weight, thickness, and profile.

Step 3 – Fabrication

• Custom cutting and shaping for tanks, ducts, and complex piping systems.

Step 4 – Installation

• Fixing with stainless steel fasteners and sealed overlaps to prevent water ingress.

Step 5 – Quality Inspection

• Ensure compliance with ISO 9001:2015 and UAE Civil Defense regulations.

Industries We Serve Across All Emirates

• Dubai – High-rise HVAC, commercial facilities.
• Abu Dhabi – LNG terminals, oil refineries.
• Sharjah – Manufacturing plants.
• Ajman – Food storage facilities.
• Umm Al Quwain – Marine docks.
• Ras Al Khaimah – Tank farms.
• Fujairah – Offshore platforms.

Compliance & Quality Standards

Our Aluzinc & Galvanized Cladding projects comply with:

• ISO 9001:2015 – Quality Management
• ISO 14001:2015 – Environmental Management
• ISO 45001:2018 – Occupational Health & Safety
• ASTM A792 (Aluzinc) / ASTM A653 (Galvanized)
• UAE Civil Defense Fire & Safety Regulations

Case Study – Aluzinc Cladding for Fujairah LNG Facility

Challenge:
Salt-laden air was accelerating corrosion on insulation jacketing.

Solution:
Protek installed Aluzinc AZ185 stucco embossed sheets with sealed seams.

Results:

• Lifespan extended by 25+ years.
• Reduced maintenance costs.
• Improved safety compliance.

Sustainability Benefits

• Recyclable – Both materials can be fully recycled.
• Energy Savings – Reflective surfaces reduce cooling loads.
• Extended Insulation Life – Protects against weather, UV, and mechanical damage.

Why Choose Protek for Aluzinc & Galvanized Cladding in UAE?

• Local Expertise – Deep understanding of UAE’s diverse climates.
• Material Sourcing – High-quality sheets from trusted global manufacturers.
• Custom Solutions – Tailored designs for unique site conditions.
• Full-Service Approach – Supply, fabrication, installation, and maintenance.

Aluzinc and Galvanized Cladding provide cost-effective, durable, and versatile protection for insulation systems and industrial structures. Whether your project is in Dubai’s commercial sector, Abu Dhabi’s oil fields, or Fujairah’s marine docks, Protek Contracting delivers precision installation, premium materials, and long-lasting performance.
